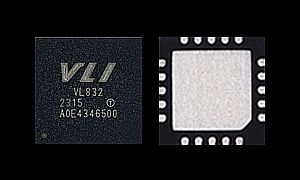

威锋电子全能USB4控制器 VL832 (40Gbps/8k)

智能电子 wes 1个月前 (01-15) 70次浏览

        VL832具有一个USB4或雷电4上行接口,具备5个下行接口和1个DP接口,整合了USB 3.2 Hub、USB 2.0 Hub 和 DisplayPort 输出功能,为多功能高速连接转接器及扩展坞等周边设备提供了支持。

        VL832 – Endpoint Device features 40Gbps bandwidth with 8K Video and SuperSpeed USB support.

        The VL832 is a USB-IF Certified USB4 Endpoint device controller with an integrated USB 3.2 USB 20Gbps Hub, a USB 2.0 hub with Multiple Transaction Translators, and a DisplayPort 1.4a output. VL832 provides essential connectivity and an optimized cost structure for peripheral devices such as multi-function adapters and docking stations. In USB4 40Gbps mode, VL832 supports full DisplayPort HBR3 bandwidth (32.4Gbps), and the USB 3.2 hub function supports up to USB 20Gbps operation on its upstream port, enabling multiple USB 10Gbps devices to operate at peak performance on supported host platforms. Both metrics are double what was previously possible using DisplayPort Alternate Mode over USB Type-C (DP Alt Mode), which is limited to 2-lanes of DisplayPort when supporting USB 3.2 functionality. VL832 operates at full performance when used with Thunderbolt™ 4 or USB4 systems and falls back to DP Alt Mode operation when used with legacy platforms.

        VL832 utilizes a 10x10x1.03 mm Flip Chip-Chip Scale Package with a 0.5mm ball pitch for ease of manufacturability and small board size. VL832 features five USB downstream ports, with one USB 2.0 port and four USB 10Gbps ports. Two downstream USB 10Gbps ports have an integrated mux for board area savings and improved signal integrity for data-only USB Type-C applications. There are also optionally configurable virtual USB devices for Billboard, HID, or DFU functionality. Secure firmware updates are supported using SHA256 for hashing and ECDSA256 for digital signature verification. VL832 requires an external USB PD controller for upstream and downstream USB Type-C ports. USB Power Delivery’s Extended Power Range (EPR) features can be supported with a capable VL10X Series USB PD Controller, which can also share a single SPI flash with VL832 and offer improved integration without consuming an additional USB port.


Key Features

  • USB Specification Compliant
    – Compliant to Universal Serial Bus 4 Specification
    – Supports Gen 2 & Gen 3 Operation (20Gbps & 40Gbps)
    – Supports USB and DisplayPort Tunneling
    – Compliant to Universal Serial Bus 3.2 Specification
    – Meets all USB 3.2 ECN & Compliance Testing Updates to date
    – Compliant to Universal Serial Bus 2.0 Specification
    – Integrated USB 2.0 Hub supports MTT
  • DisplayPort Specification Compliant
    – Compliant to DisplayPort version 1.4a
    – 1x Dedicated DP Output
    – DisplayPort alternate mode (Sink) support
    – 1.62Gbps/2.7Gbps/5.4Gbps/8.1Gbps signal rates
    – 2-Ln/4-Ln Firmware Configurable
  • Security Feature Support
    – Hardware Support for Digitally Signed Firmware (256-bit ECDSA)
    – Integrated SHA256 Hash Engine
    – Configurable for Verity-On-Update or Verify-On-Boot
  • USB Functions
    – Integrated USB 3.2 SuperSpeed 10Gbps Hub
    – Supports up to 5x DFP (4x USB SS, 1x USB HS)
    – Integrated USB Billboard Class 1.2.2 Device
    – Implemented as a USB2 Virtual Device
    – Configurable by supported USB PD Controllers (Such as VL10X-series PD Controllers)
    – Supports firmware update over USB
  • Full Sideband Signal Support
    – Supports both Individual and Ganged Port Power Control Operation for All USB Ports
    – Supports PWM LED Status Lights
    – SPI Interface for Firmware. Firmware Upgradable over USB or I2C.
    – Management Interface for Specialized Applications
  • Comprehensive USB Battery Charging Support
    – Supports USB Battery Charging Specification v1.2 (SDP, CDP, DCP)
    – Support for Vendor Specific Charging Modes eg. Apple 2.4A, Samsung, etc.
    – Supports YD/T 1591-2009
    – Supports Stand-Alone Charging when System is Suspend, Shut Down, or Disconnected
    – Any Combination of DFPs can be Configured to Support USB Battery Charging
  • Power and Package
    – In-house PHY employs advanced CMOS process for low power consumption
    – Requires 3.3V/1.05V/0.9V Inputs
    – 25MHz Xtal
    – FCCSP green package (10x10x1.03 mm, 19×19 Grid with 328Balls)
    – Pin to Pin with VL830
  • Certification
    – VL832 earned USB4 Device certification TID# 10033
